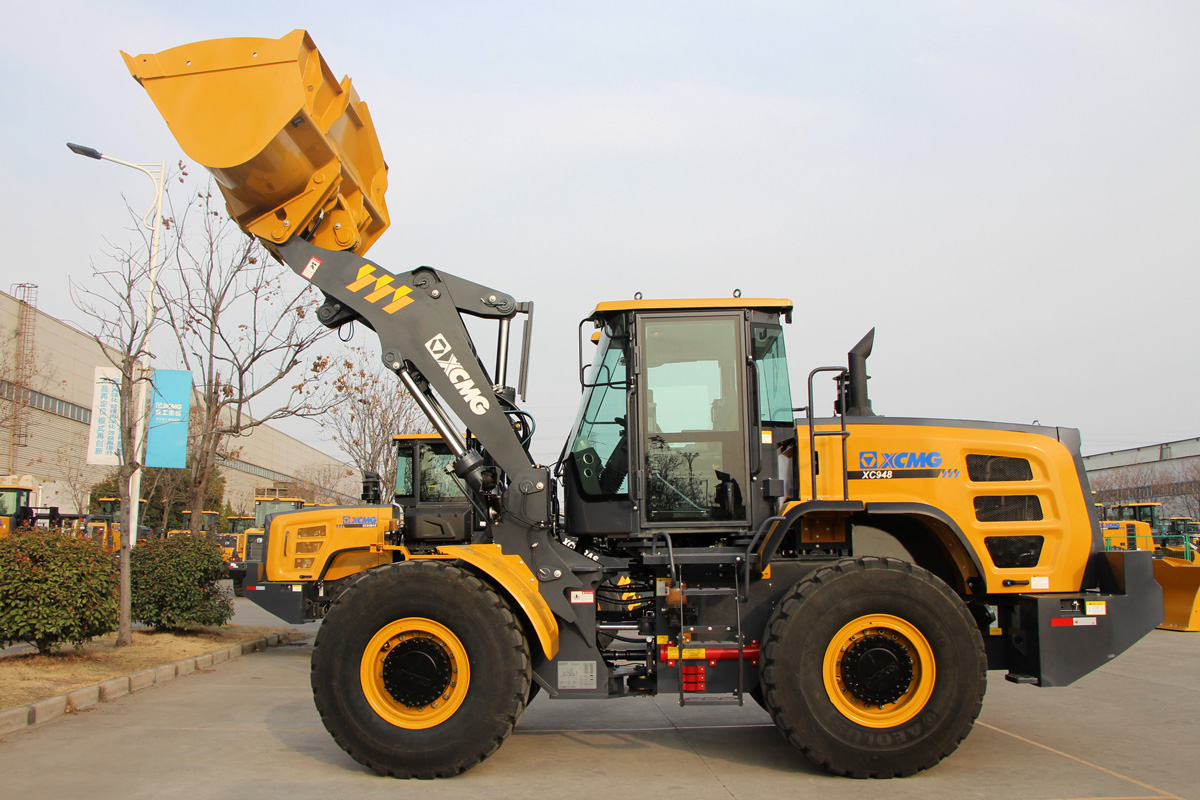

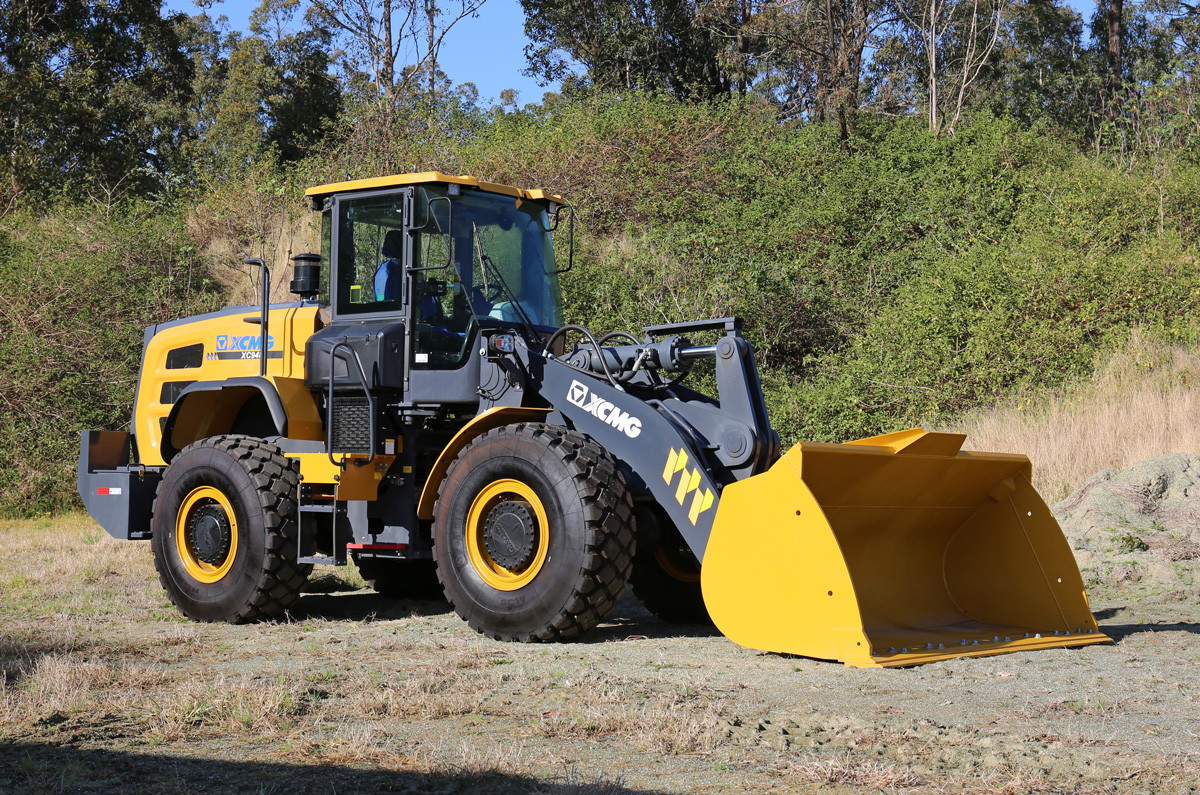

The XCMG XC948 wheel loader is a new generation of loader. XCMG makes full use of its international R&D platform to integrate global technology and produce completely independent designs.
As a result, the XC948 front end loader is uniquely comfortable, durable, reliable and efficient – as well as being simple to maintain. With worldwide renown for its performance and value for money, the XC948 is the ideal solution for customers seeking a versatile 16-17 tonne loader solution for any application or industry.

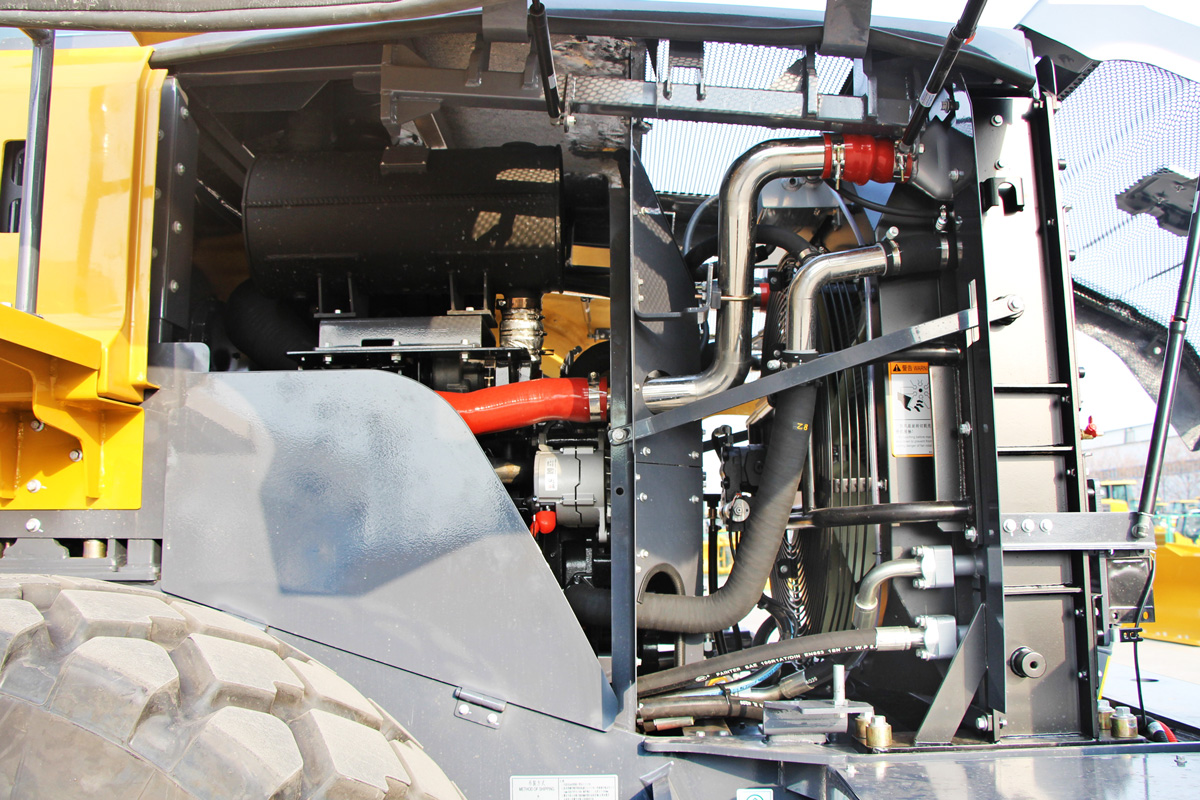

Equipped with a Tier 3 emission Cummins QSB6.7 engine, automatic 4BP 190 torque converter, XCMG high performance wet axle and full hydraulic wet brake system, the entire machine offers significant reliability, efficiency, comfort and control.
Key Performance Specs
| Operating Weight: | 16500 kg (approx) |
| Engine: | Cummins QSB 6.7 |
| Power: | 142kW / 190HP |
| Rated Operating Load: | 4000 kg |
| Dump Height: | 2810 mm |
| Dump Distance: | 1082 mm |
| Wheel Base: | 3050 mm |
| Wheel Track: | 2020 mm |
| Minimum Ground Clearance: | 410 mm |
| Length: | 7882 mm |
| Height: | 3405 mm |
| Width: | 2550 mm |
Additional Specs
| Dumping Angle: | 45 Degrees |
| Max Breakout Force: | 130 kN |
| Max Traction: | 135 kN |
| Turning Radius: | 5200 mm |
| Lift Time of Boom: | 4.5 Seconds |
| Total Hyd Cycle Time: | 9.5 Seconds |
| Tipping Load (Max Steering): | 9000 kg |
| Tipping Load (Straight State): | 11000 kg |
| Speed (1/2/3/4): | 7/13/24/38 |
| Rotate Speed: | 2200 RPM |
| Bucket: | 2.4m3 |
